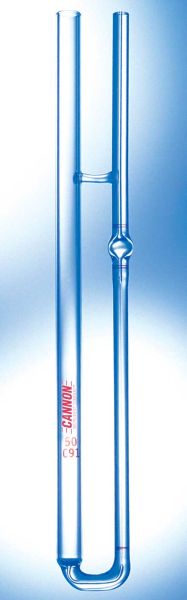

Cannon-Manning
Semi-Micro Viscometers

Calibrated CMSMC (9721-Y50) Series

For measurement of kinematic viscosity of small samples of transparent Newtonian liquids, including petroleum products or lubricants, according to ASTM D 445 and ISO 3104. Specifications conform to ASTM D 446 and ISO 3105. Read more about the significance of expanded uncertainty.

Provided with certificate of calibration and instruction sheet.

Uncalibrated CMSMU (9721-X50) Series

Similar to 9721-Y50 series, but uncalibrated.

• Sample volume approximately 1.0 mL. Sizes 400 through 600 may require more sample. Require liquid bath depth of 200 mm (8 inches).
• Size 25 has approximate constant 0.002 cSt/s and a range of 0.4 to 2 cSt.
• Holder is not supplied. For holders, see 9726-M50, 9726-M53.



  Size	Approx. constant, mm2/s2(cSt/s)	Kinematic Viscosity Range mm2/s(cSt)	CMSM Uncalibrated Series	CMSM Calibrated Series
  25*	0.002	0.5 - 2	9721-X50 Qty	9721-Y50 Qty
  50	0.004	0.8 - 4	9721-X53 Qty	9721-Y53 Qty
  75	0.008	1.6 - 8	9721-X56 Qty	9721-Y56 Qty
  100	0.015	3 - 15	9721-X59 Qty	9721-Y59 Qty
  150	0.035	7 - 35	9721-X62 Qty	9721-Y62 Qty
  200	0.1	20 - 100	9721-X65 Qty	9721-Y65 Qty
  300	0.25	50 - 250	9721-X68 Qty	9721-Y68 Qty
  350	0.5	100 - 500	9721-X71 Qty	9721-Y71 Qty
  400	1.2	240 - 1200	9721-X74 Qty	9721-Y74 Qty
  450	2.5	500 - 2500	9721-X77 Qty	9721-Y77 Qty
  500	8	1600 - 8000	9721-X80 Qty	9721-Y80 Qty
  600	20	4000 - 20000	9721-X83 Qty	9721-Y83 Qty
