产品详细介绍：

技术参数：

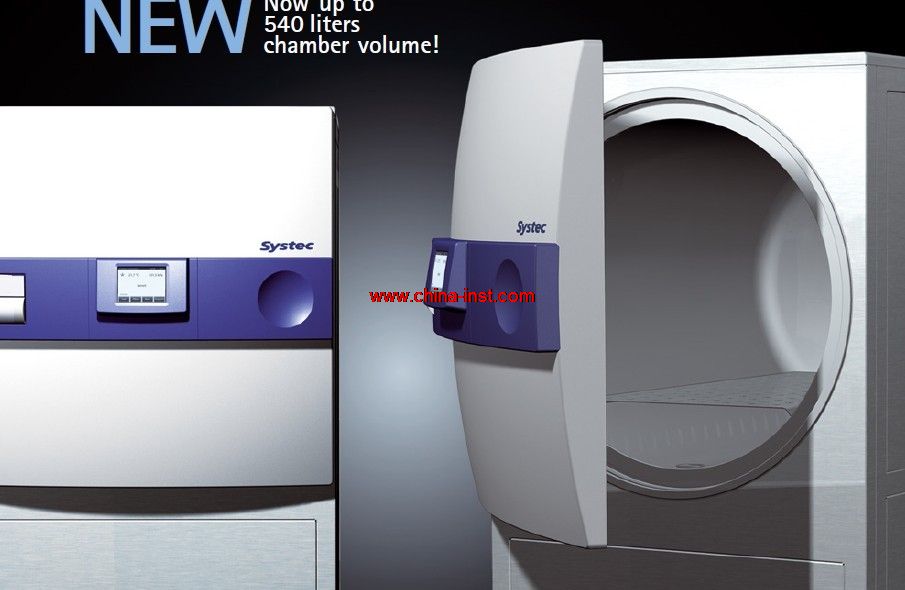

- 柜式前开门进样/Horizontal front loading

- 容量/capacity：210L至540L

- 最大压力/max. pressure = 4 bar

- 操作温度范围/operating temp. range = 60-140℃

- 腔体温度范围/chamber working temperature range = -10oC-140℃

- 操作时间范围/sterilizarion time = 0-9999min

*- 内置蒸汽发生装置，压力腔体不带电加热金属/built-in steam generator separated from sterilization chamber

*- 温度精度/temperature precision = 0.1℃

- 压力精度/pressure precision = 1 mbar

- 保温温度范围/warm keeping temperature = 40 - 80oC

- 带外部蒸汽供应连接口/Connection to external steam supply

*- 100个灭菌程序 = 1-3 固体灭菌/4-5 废弃物灭菌/6-7 废液灭菌/8-11液体灭菌/12清洗/13 B-D测试程序/14真空测试程序/15-100 自设程序(100 sterilization programs = 1-3 solid /4-5 waste /6-7 liquid waste /8-11 liquid /12 cleaning/13 B-D test/14 Vacuum test/15-100 Free programs)

*- 高达500个灭菌周期数据存储/Internal memory documentation for up to 500 sterilization cycles

- 触摸屏操作系统/Touch Screen operation

- 可设置灭菌结束自动开盖/Pre-programmable automatic door opening at the end of a program

*- 蒸气排放前经Pt100调节系统控制自动冷凝，避免排水管道接触高温/exhaust steam is condensed before drainage via Pt100-regulated cooling system

*- 标配独立样品温度探头/flexible medium temperature sensor PT-100

*- 液体灭菌后保温功能/Temperature holding function after the end of program for liquids

- 隔热门盖/heat-resistant lid

- 监控系统识别失败程序/program failure warning

- 自动补水装置/automatic water refill

- 蒸气发生器无水警报/low water level warning in steam generator

- RS232/RS485/USB 计算机接口及局域网接口/RS232/RS485/USB&Ethernet interface

- 压力安全阀/safety pressure valve

*- F0值计算功能/Calculation of F0

*- 温度及压力双重控制/sensor for temperature and pressure control

*- 抗腐蚀AISI 316 TI 不锈钢外壳及腔体结构/corrosion resistant-AISI 316 TI stainless steel housing & chamber frame

- 具备认证口/validation port

- 国际安全标准文件/international standard safety documents

主要特点：

l         内置独立蒸汽发生器

l         有效灭菌容积：210升或以上，适合企业大容量灭菌需求

l         标配独立样品温度探头

l         抗腐蚀AISI 316 TI 不锈钢外壳及腔体结构

l         具备认证口及国际安全标准文件
