产品特点:
执行标准:ASTM/ ISO2555标准
他的现代化弹簧的技术和坚固的设计可确保不可否认的可靠性。
配置:包含支架和2-7号转子。
技术规格
测量原理
ASTM转子旋转粘度计
旋转速度
21速度:0.3/0.5/ 0.6/1/1.5 /2 /2.5/3/4/5/6/10/12/20/30/40/50/60/100/200/250转
扭矩范围
0,05至10 mNm
准确性
+/ - 1%的满刻度
重复性
+/ - 0.2%
数字显示
转速 - 转矩 - MS - 粘度: - 时间
粘度范围
20 - 156 000 000 mPa.s
电源电压
90-240 VAC,50/60赫兹
其他细节
黑色使修复时间触变样品的测量。
外形尺寸(宽x长x高)和重量
122×130×660毫米 - 6公斤
应用:食品行业/化工/石油行业/化妆品/制药化/汽车行业/建筑行业油漆/涂料/油墨油漆/涂料/油墨/教学
=====================================================================

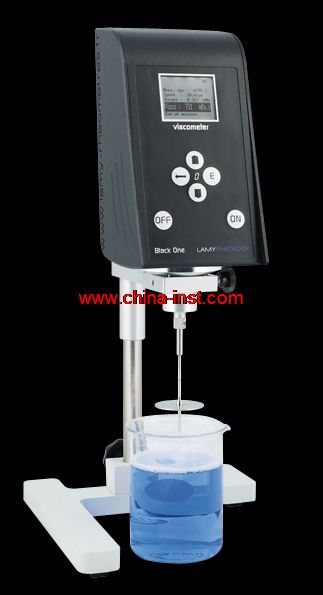

The BLACK ONE is designed for viscosity measurements in accordance with theASTM /ISO 2555 standard. His modern springless technology and sturdy design ensures undeniable reliability. It is delivered with a laboratory stand and a set ofASTM2 to 7 spindles.
BLACK ONE SPECIFICATIONS
Measuring principle
Rotating viscometer with ASTM spindles
Rotation speeds
21 speeds : 0.3 / 0.5 / 0.6 / 1 / 1.5 / 2 / 2.5 / 3 / 4 / 5 / 6 / 10 / 12 / 20 / 30 / 40 / 50 / 60 / 100 / 200 / 250 rpm
Torque range
0,05 to 10 mNm
Accuracy
+/ - 1% of the full scale
Repeatability
+/ - 0.2%
Digital display
Speed - Torque - MS - Viscosity - Time
Viscosity range
20 - 156 000 000 mPa.s
Supply voltage
90-240 VAC 50/60 Hz
Other detail
The Black One enables to fix time of measurement for thixotropic samples.
Dimensions (W x L x h) and weight
122 x 130 x 660 mm - 6 kg
|
