特点：

FIRST RM是专门用于测量动态粘度。他的现代技术无弹簧设计,使得测量更简单。

配置：支架，PT100传感器和一个手提箱。

测量原理
旋转粘度计含ASTM转子
旋转速度
21速度：0.3/0.5/ 0.6/1/1.5 /2 /2.5/3/4/5/6/10/12/20/30/40/50/60/100/200/250转
扭矩范围
0,05至10 mNm
准确性
+/ - 1％的满刻度
重复性
+/ - 0.2％
温度
PT100传感器，从-20℃〜120℃
数字显示
T°C - 转速 - 转矩 - MS - 粘度 - 时间
粘度范围
20 - 180 000 000 mPa.s
电源电压
90-240 VAC，50/60赫兹
PC联接
串行端口或USB端口
打印机联接
Centronics并行端口
其他细节
首先RM可以修复触变样品的测量时间。可以添加打印机间隔。
外形尺寸（宽x长x高）和重量
122×135×660毫米 - 6公斤

应用
食品行业化工行业教学
化妆品/制药汽车行业
涂料/墨水建设行业


可用的附件：（可选配的转子及软件）

MS-ASTM/ISO 2555 2-7.
MK ASTM N°1.
MK-KU 1-10.
MK 75 Y.
MS-DIN 11-22-33.
MS-BV 1 to 1000.
Visco RM 软件.

====================================================================================

Activity : QUALITY  CONTROL

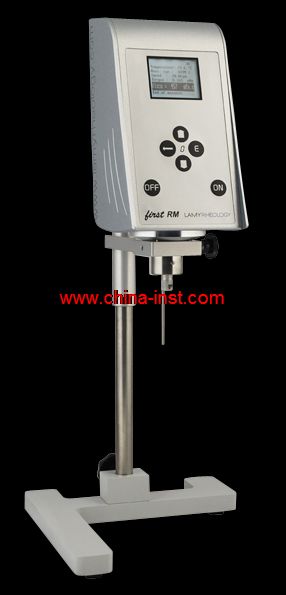

The First RM is dedicated for measuring dynamic viscosities.
It is delivered with a laboratory stand, onePT100sensor and a carrying case.
His modern technology without spring, and his robust design makes it essential for simple measurements.

FIRST RM SPECIFICATIONS

Measuring principle

Rotating viscometer withASTMspindles

Rotation speeds

21 speeds : 0.3 / 0.5 / 0.6 / 1 / 1.5 / 2 / 2.5 / 3 / 4 / 5 / 6 / 10 / 12 / 20 / 30 / 40 / 50 / 60 / 100 / 200 / 250 rpm

Torque range

0,05 to 10 mNm

Accuracy

+/ - 1% of the full scale

Repeatability

+/ - 0.2%

Temperature

ByPT100sensor, from -20 to 120 °C

Digital display

T°C - Speed - Torque - MS - Viscosity - Time

Viscosity range

20 - 470 000 000 mPa.s

Supply voltage

90-240 VAC 50/60 Hz

PC Connexion

Serial or USB ports

Printer Connexion

Centronics parallel port

Other detail

First RM enables to fix time of measurement for thixotropic samples. A printer interval could be added.

Dimensions (W x L x H) and weight

122 x 135 x 660 mm - 6 kg

APPLICATIONS
Food industry Chemical industry Teaching
Cosmetics/Pharmaceuticals Cars industry
Paint/Ink Building industry

AVAILABLE ACCESSORIES

MS-ASTM/ISO 2555 2-7.
MK ASTM N°1.
MK-KU 1-10.
MK 75 Y.
MS-DIN 11-22-33.
MS-BV 1 to 1000.
Visco RM software.
