RM100L在线粘度计

RM100L有19个旋转速度从5至600转，一个4-20mA输出信号，
RS232串口。
RM100L管道上直接在线高流速或低弯曲流率，并使用一个磁耦合提供完美的密封性。实时的粘度测量。

RM100L规格
测量原理：在线旋转粘度计
转速19转的速度：
5/6/10/12/20/30/40/50
60/70/80/90/100/200/250
300/400/500/600。
扭矩范围0.1至20 mNm
温度-20至80°C（PT100传感器选项）
精度+/-1％满量程
重复精度+/ - 0.2％
数字显示温度 - 转速 - 转矩 -
粘度 - MS - 时间
粘度范围:1 to 500 000 mPa.s
电源电压90-240 VAC，50/60赫兹
PC联接RS232串口
模拟输出4-20毫安的扭矩
其他细节

粘度RM软件允许自动电脑上测量。
外形尺寸（宽x长x高），箱：105×175×261毫米
主管：∅92毫米X H312毫米
重量4公斤

应用：

食品工业/化妆品/制药/巧克力/化工

可选配测试单元和软件

LD75 CD75，CD50，LD100，CD25测量单元。

Visco RM 软件

================================================================

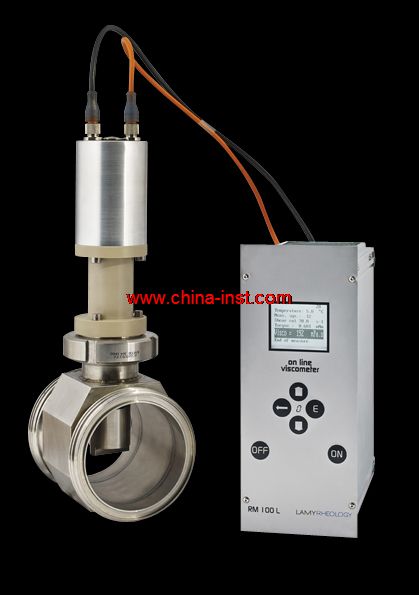

RM 100L

online viscometer

The RM 100L has 19 rotation speeds from

5 to 600 rpm, a 4-20 mA output signal and

RS232 serial port.

RM 100L works directly online on a pipe

for high flow rates or in a bend for low

flow rates, and uses a magnetic coupling

providing perfect leaktightness. Real time

acquisition of the viscosity.

RM 100L SPECIFICATIONS

Measuring principle On line rotating viscometer

Rotation speeds 19 speeds in rpm:

5 / 6 / 10 / 12 / 20 / 30 / 40 / 50

60 / 70 / 80 / 90 / 100 / 200 / 250

300 / 400 / 500 / 600.

Torque range 0.1 to 20 mNm

Temperature -20 to 80 °C (PT100 sensor in option)

Accuracy +/-1% of the full scale

Repeatability +/- 0.2%

Digital display Temperature - Speed - Torque -

Viscosity - MS - Time

Viscosity range 1 to 500 000 mPa.s

Supply voltage 90-240 VAC 50/60 Hz

PC connexion RS232 serial port

Analog output 4-20 mA for the torque

Other detail The Visco RM software allows automatic

measurements on computer.

Dimensions (WxLxH) and weight Electronic box:

105 x 175 x 261 mm

Head: ∅92 mm x h 312 mm

4 kg

APPLI CATIONS

Food industry Cosmetics/Pharmaceuticals

Chocolate Chemical industry

AVAIL ABLE ACCESSORIES

CD75, LD75, CD50, LD100, CD25 measuring cell.

Visco RM software.
