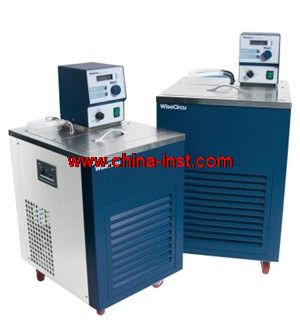

wisecircu -冷冻循环浴槽
•Ideal for Direct Immersion of Samples or External Circulating System in the field of Biotechnology and Laboratories.
•理想的在生物实验室的样品或外循环系统直接浸入。
•Innovative Easy-to-Use Digital Fuzzy Controller.
•创新的易于使用的数字模糊控制器。
•Simplest Control by Jog-Shuttle Switch (Patent pending) and Digital LCD display.
•简单的飞梭控制开关(专利申请中)和数字液晶显示屏。
•RS232C Interface for Remote Monitoring and Controlling with PC.
远程监测和控制•RS232C接口与PC。
•Digital Timer Function :‘ Delay Time’and‘Operation Time’can be controlled.
•数字定时器功能:“延迟time'and'operation time'can控制。
•Stainless Steel Bath(#304) for Superior Durability & High Thermal Efficiency.
•不锈钢浴(# 304)优越的耐久性和高的热效率。
•Stainless Steel Lid prevents Evaporation and keeps Constant Temperature.
•不锈钢盖子防止蒸发、保持恒定温度。
•Powerful Circulation Pump assures Temp. Uniformity.
•有力保证温度循环泵。均匀性。
•Internal and External Circulation
•内外循环
•Possible Connection with Evaporator or Viscometer.
•可能与蒸发器或粘度计。
•User’s Self-compensation function to control Difference between Real Temperature and Indicated Temperature (±10.0?).
•用户自补偿功能的控制之间的真实温度差和表明温度(±10?)。
•Warning and Auto-Stop function for Shortage of Liquid.
•报警和自动停止功能液短缺。
•Auto-controlled Refrigerating System with Protection of Compressor and Power Saving.
•自动控制制冷系统的压缩机保护和节能。
•Digital LCD with Back-Light Function.
•数字液晶背光功能。
•Over Temperature & Over Current Protection, Sensor Error & Low Level Detection, Leakage Breaking.
•过电流保护下,传感器的误差和低水平的检测,漏断。
•CFC-free (404A) Refrigeration System.
•无氟制冷系统(404A)。
•CE Certified
•CE认证
•PL(Product Liability) Insurance
•PL(产品责任)保险
•storage function for repeated applications in the laboratory under identical conditions
重复应用在实验室中相同的条件下,•功能的存储
model型号 |
Wisd WiseCircu WCR-P8 |
Wisd WiseCircu WCR-P12 |
Wisd WiseCircu WCR-P22 |
Wisd WiseCircu WCR-P30 |
dimension (LxBxH)尺寸 |
effective space (mm)有效空间 |
180 x 143 x 150 |
250 x 150 x 150 |
350 x 250 x 150 |
350 x 250 x 205 |
internal (mm) 内尺寸 |
180 x 310 x 150 |
250 x 320 x 150 |
350 x 420 x 150 |
350 x 420 x 205 |
external (mm)外尺寸 |
262 x 468 x 630 |
372 x 460 x 750 |
455 x 545 x 770 |
455 x 545 x 845 |
bath capacity 容积 |
8 Liter |
12 Liter |
22 Liter |
30 Liter |
heating power 功率 |
1000W |
1500W |
2000W |
2200W |
refrigerator |
1/3HP |
1/3HP |
3/4HP |
7/8HP |
temperature温度 |
range °C范围 |
- 20°C ~ 100°C |
accuracy精度 |
±0,1°C |
uniformity |
±0,2°C bei -10°C |
sensor传感器 |
PT100 |
material材料 |
internal内 |
stainless steel (#304) |
external外 |
powder coated steel |
insulation保温材料 |
polysytrene 20mm |
pump泵流速 |
15 l/min |
compressor control压缩机控制器 |
Intelligent Control of Refrigerator for preventing Overload of Compressor智能控制的防止过载的制冷压缩机 |
refrigerant制冷剂 |
CFC-free (404A) refrigeration system 无氟制冷系统(404A) |
controller控制器 |
Programmable Digital Feedback controller with Jog-Shuttle Switch (Turn + Push) |
display显示 |
digital LCD with backlight function具有背光功能的液晶数字显示 |
timer时间 |
99 h 59 min (delay & continuous function included)99小时59分钟(延迟和连续) |
safety device安全装置 |
over temperature and over current protected, sensor error and low level detector, leakage breaker过温过流保护,传感器的误差和低水位探测器,漏电断路器 |
others其他 |
user self-compensation function ±10°C 用户自补偿功能±10°C |
storage function (temperature, timer)存储功能(温度,定时器) |
locking mode (Jog-Shuttle disabled)锁定模式 |
alarm signal (error status and timer-end)报警信号(错误状态和定时器结束) |
power supply*电源 |
AC 230 V, 1N~, 50 Hz / 60 Hz |
AC 400 V, 3N~, 60/60 Hz (bei WCR-P30) | |
