一、产品特点:
订货号 3964000

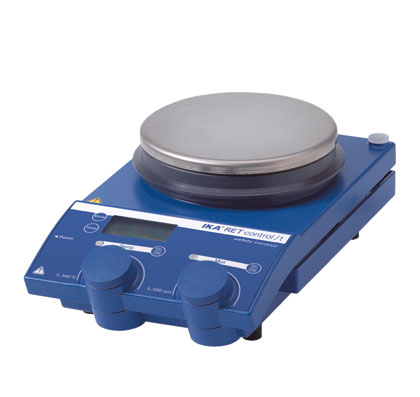

New safety magnetic stirrer with heating, suitable for unsupervised operation. - Timer: min. 1 min / max. 9 h 59 min - Option: 1 sensor for medium temperature (PT 100) or 2 separate temperature sensors for heat transfer fluid and medium (PT 1000) available (automatic identification) - 2 adjustable safety circuits - Stirring bar crack detection - Setting acc. medium temperature: 0,5 K - HOT warning display indicating any residual heat when unit is switched off - Easy-to-read backlit LCD display - Actual medium temperature resolution displayed: 0,5 K (RT to 100 °C); 1 K (from 100 °C upwards) - Fuzzy control and microprocessor technology guarantee maximum control accuracy - PC control via RS 232 interface, with optional safety function - Software labworldsoft® is available to control and document all measured values via PC - 3 modes of operation, e.g. stirring and heating functions can be secured against inadvertent changes of set parameters - Enclosed assembly (IP 42) guarantees long service life - Incl. protection cover H 99
二、技术参数:
搅拌点位数目 |
1 |
每个搅拌点位最大搅拌量 (H2O) |
20 l |
最大搅拌量 (H2O) |
20 l |
电机输入功率 |
12 W |
电机输出功率 |
5 W |
转速显示 |
LCD |
速度范围 |
0 - 1200 rpm |
搅拌子最大长度 |
80 mm |
加热输出功率 |
600 W |
加热速度 1升H2O in H 15) |
7 K/min |
加热温度范围 |
室温 - 340 °C |
加热温度控制 |
无级 |
加热温度控制精确度 |
0.5 ±K |
转速控制 |
无级 |
可调安全温度回路最小值 |
50 °C |
可调安全温度回路最大值 |
350 °C |
外接温度传感器接口 |
PT 100 |
带传感器控温精确度 |
0.2 ±K |
工作盘材质 |
不锈钢 1.4301 |
工作盘外形尺寸 |
Ø 135 mm |
外形尺寸 |
160 x 97 x 280 mm |
重量 |
2.8 kg |
允许环境温度 |
5 - 40 °C |
允许相对湿度 |
80 % |
DIN EN 60529 保护方式 |
IP 42 |
RS 232接口 |
是 |
模拟输出 |
是 |
电压 |
220 - 230 / 115 / 100 V |
频率 |
50/60 Hz |
仪器输入功率 |
630 W | |
