商品名称:美国WACO VSM II Video Seam Monitor

 美国WACO VSM II Video Seam Monitor
  商品编号: 201274499
  商品规格:
  商品品牌: 美国WACO沃克
  商品比较:
  商品库存: 10台 热卖中
  商品折扣: 0折 ( 赠送积分0分 )
  浏览次数:
  购买数量:
市场价:
¥1.00元
会员价:
¥0.00 元
VIP 价:


Brighter, sharper picture means more accurate measurements

     The most advanced technology is now availabel for fast, accurate quality inspection measurement of can double seam cross sections. Conventional seam projectors produce seam images that are not clear or bright enough to see the fine details of the seam. This can lead to inaccurate, inconsistent measurements.

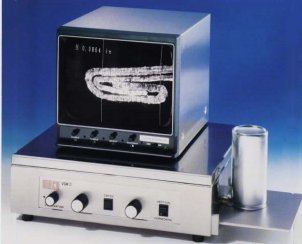

     WACO VSM II is the solution - a high resolution CCD camera and monitor, superior optics and a solid state light source. The result is an extremely sharp, bright 50X image of the can seam which is easy to evaluate and measure.
     A toggle switch selects a pair of crosshairs on either of the X or Y axis. The operator postions each cursor on the desired aspect of the can seam image and reads the digital display. Measurement of seam height, seam thickness, overlap, body hook and cover hook have never been easier to take accurately.
     Illumination is adjustable and a calibration procedure is built-in. The instrument consists of two stainless steel cabinets, the upper containing the CCTV monitor, the lower the camera, optics and electronics. The unit has both RS/232 serial and BCD parallel outputs. The enter button on the front panel or an optional footswitch can be used to send data.
     Use the WACO VSM II as a standalone instrument, or as part of a computerized seam quality control system such as the WACO Accuseam System. An optional video printer is useful for users who wish to have a permanent hard copy of the seam image. It will print a seam image in approximately 8 seconds at the touch of a button.

Specifications
Measuring Range: Horizontal .0001" to .1600" (.001 mm to 4.00 mm)
  Vertical .0001" to .1200" (.001mm to 3.00 mm)
Resolution: .001" (.001mm)
Measuring Units: inches/mils/millimeters
Magnification: approximately 50X
Outputs: RS/232 Serial; Parallel BCD
Power: 110/220 volt, 50/60 Hz
Dimensions: 19"w x 13"d x 15"h
Shipping Weight: 48 lbs
Ordering Information
10732-00  WACO VSM II Video Seam    Monitor, complete

10732-10 Footswitch

10730-93  Video Printer
