pH
量程：-2.000 - 20.000 pH
分辨率：0.1 / 0.01 / 0.001 pH
相对精度：±0.002 pH
校正点：1 ~ 6点
自动识别缓冲液：USA，NIST，DIN，PWB，自定义

ORP
量程：± 2000.0 mV
RmV量程：± 2000.0 mV
分辨率：0.1 mV
相对精度：± 0.2 mV + 1LSD

温度
量程：-10.0 - 110.0℃
分辨率：0.1℃
相对精度：± 0.5℃

仪表功能
温度补偿方式：自动 / 手动（0.0-100 ℃）
GLP标准：符合
校正提醒：是
显示斜率/offset ：是
IP67标准：符合
数据存储：500组
操作温度：0-50 ℃
LCD显示：背光LCD（5.4×7.1 cm）
自动关机：2-30分钟不操作自动关机
输入：DC phono sockets，BNC，8针接口
输出：IrDA（红外传输），RS232C
电源：4×1.5 V 'AAA' 碱性电池；9 V稳压电源，500 mA
电池寿命：＞500小时

仪表尺寸/重量
单机：18.3×9.5×5.7 cm / 460 g
包装：40×33×10 cm / 3200 g



Specifications

Product Specification	Description
pH Range	-2.000 to 19.999 pH
Resolution & Accuracy (±1 LSD)	0.1/ 0.01/ 0.001 & ±0.002 pH
mV Range	±2000 mV
Resolution & Accuracy (±1 LSD)	0.1 mV & ±0.2 mV
Temperature Range	-10.0 to 110.0 °C (14.0 to 230 °F)
Resolution & Accuracy	0.1 °C/ 1.0°F
Temperature Compensation	Automatic / Manual (0 to 100 °C)
No. of Calibration Points	Up to 6 points
Cal Due Alarm	Yes (Days - Max 30)
pH Buffer Options	USA, NIST, DIN, PWB
Custom Buffer Calibration	Yes (2 to 5)
Slope/ Offset Display	Yes (Display + Icon)
Inputs	DC phono sockets, 8 pin connector, BNC
LCD Display	Back-lit Dot Matrix
Memory	500 data sets
Output	Yes (IrDA/ RS232C)
Special Functions	Stability Indicator; Self-diagnostic; Non-Volatile Memory; Hold & Auto-Power Off after 20 minutes
GLP	Yes
Ingress Protection	IP67
Power	4 'AAA' x 1.4V batteries or 9VDC power adapter

Order Information

Order No.	Item

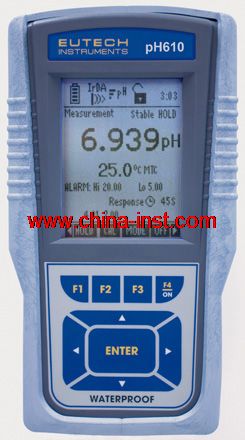

ECPHWP61001	pH610 pH/mV Meter with ATC Probe
ECPHWP61042K	pH610 pH/mV Meter with pH Electrode, ATC Probe, Power Adapter & pH Carrying Kit Set
ECPHWPTEMO1J	Temperature Probe ATC
01X030132	Universal Power Adapter
ECMICROPRNTR01	Serial Impact Micro-Printer: Dot-matrix, paper-roll portable printer with 25-pin female connector. Includes one roll of paper and a 110/120 VAC power adapter.
ECMICROPRNTR02	Serial Impact Micro-Printer: Dot-matrix, paper-roll portable printer with 25-pin female connector. Includes one roll of paper and a 220/230 VAC power adapter.
ECMICROPRNTR02CLK	Serial Impact Micro-Printer with Built-in Real Time Clock: Dot-matrix, paper-roll portable printer with 25-pin female connector. Includes one roll of paper and a 220/230 VAC power adapter.
ECADPTRM9M25	Adpater for RS232 Communication Cable: 9-pin male to 25-pin male connector.
01X447601	USB IrDA Interface Adapter
01X344202	RS232 (LED) Interface Adaptor
