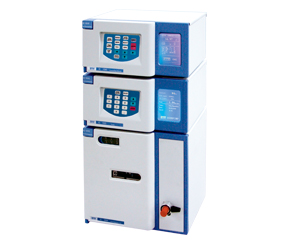

ETT-1010  Ion Chromatograph

Product Description

Function of a hybrid type of ion chromatography system PEEK flow path design, and technology to produce first-class ion chromatography. Can choose the world's most advanced ion chromatography suppression techniques (6th generation) DS-plus suppressor, according to the analytical requirements of continuous automatic regeneration of the yin and yang, ion-exchange membrane suppressor; at the same time there are several types of cation-anion analytical column to select. To meet the yin and yang examples of very low concentration analysis of the industry's needs.

[Applications]
Widely used in areas such as environmental protection, semiconductor, power plants, water plants, health and epidemic prevention, the analysis of inorganic anions is the preferred instrument
[Technical Specifications]
Maximum working pressure: 28MPa
Flow Range: 0.10ml/min ~ 4.99ml/min
Flow set error: ≤ ± 2% (1.0 ml / min ~ 4ml/min)
Flow stability of the error: ≤ ± 1% (0.5ml/min ~ 4.0ml/min)
Conductivity detection range: 0.1μSFS ~ 1000μSFS 9 files optional
Baseline noise: less than 1.5% FS
Baseline drift: no more than ± 3% FS
The minimum detectable concentration: less than 0.005mg / l (cl-1)
Conductivity cell: double pulse electrode
Electrode materials: U.S. 316 stainless steel
Conductivity cell volume: ≤ 1.3μl
Suppressors: Chemistry for automatic regeneration inhibition
Working power supply: AC 220V/110V ± 10%, 50Hz/60Hz

[Ordering Help]
Optional cationic Analysis system
