测试原理
根据斯托克斯定理，粉尘颗粒在沉降过程中，发生颗粒分级，因而静止的沉降液的粘滞性对沉降
颗粒起着摩擦阻力作用，按公式计算：
r = 9η/ [2 g (γk –γt )] ? (H / t)
式中：
r = 颗粒半径 cm
η= 沉降液粘度 泊，即 克/厘米?秒
γk= 颗粒比重 克/厘米³
γt = 沉降液比重 克/厘米³
H = 沉降高度(沉降液面到称盘底面的距离) 厘米
t = 沉降时间 秒
g = 重力加速度 980厘米/秒2
当测出颗粒沉降至一定高度H 所需之时间t 后，就能算出沉降速度V、 颗粒半径r。所谓沉降分析法就应用此理论来求得颗粒分布情况。

经典的测试原理、清晰明了的测试过程、稳定可靠的测试数据、快速方便的数据处理、简单易懂的操作、低廉的价格，尤其适合工矿企业实验室做质量检测以及大专院校的师生开展相关科研

====================================

Introduction

① force value sensor for high-performance electromagnetic force balance principle to optimize the design of 1mg accuracy increased to 0.1mg greatly enhanced to improve the sensitivity, accuracy and repeatability of the instrument;
② The STN wide viewing angle, backlit LCD display;
The ③ optimize the data processing software for a number of long measurement sample performance of the settlement and small particles. The calculation is smoother, more accurate results;
④ the use of advanced data structures, re-preparation of the original database program, the more stable and reliable performance.

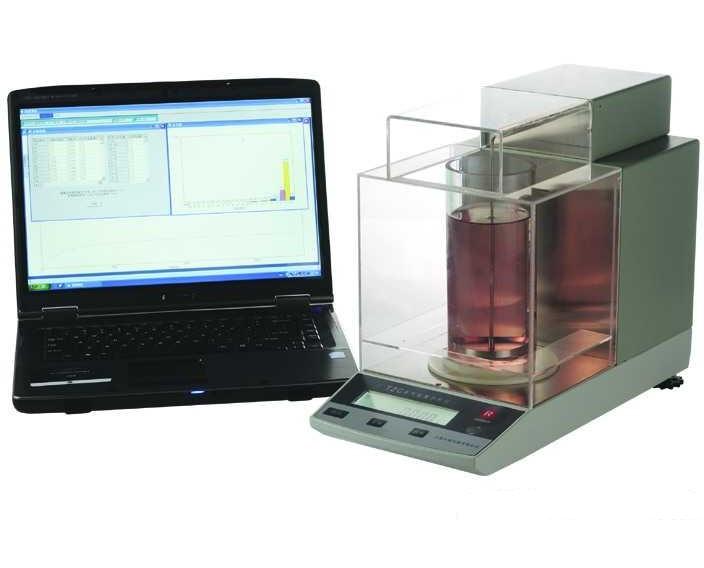

The particle detector consists of high precision electronic settlement balance, computer and granular data processing software. Settlement solution in the measured particle deposition to the balance pan, the LCD screen that displays the value of quality, at the same time the quality of the signal transmitted to the computer, the end of the real-time acquisition-grained data-processing software quality signal and displayed on a computer screen, the settlement after the curve stored in order at any time call, and then proceed to the calculation of particle size, the calculation results table and graphical print out.

The instrument is widely used in the determination: pigments, abrasive synthetic resins, cosmetics, pharmaceuticals, glass, powder metallurgy, cement, plastics, refractories, paint, oil, coal and other industrial dust particle size and distribution, is engaged in the research and testing of particle size commonly used instrument for the work of scientific and technical personnel.

Main technical parameters:



Model                                        ETT-TZC-V                   ETT-TZC-VI

Balance the maximum load             100g                        100g
Balance accuracy                            1mg                          0.1mg
Particle determination range         1 ~ 600μm             1 ~ 600μm
The host function is cleared, peeled, self-calibration, alarm
Way wide viewing angle, backlight LCD.
Data processing subsidence curves of the collection, storage, call; particle size, median diameter, with an average particle size, specific surface area measurements; average
Error calculation; particle size distribution analysis; calculations, charts, print




 Standard configuration:
Host (a self-calibration weights, cable two) 1
Lenovo desktop computers (including color inkjet printer)
A settlement plate
Ordinary sedimentation tube 2
Manual 1
Certificate copy
