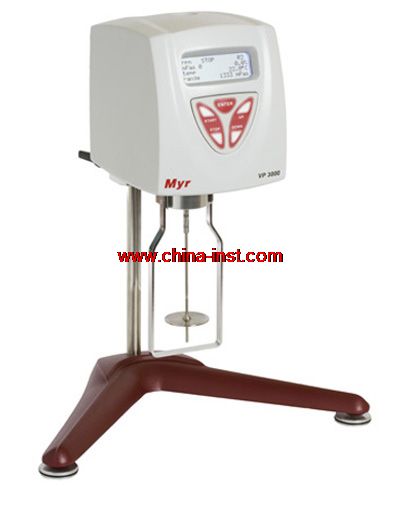

VISCOMETER VR 3000

The VR 3000 MYR Viscometers, models V0, V1 and V2, are rotational viscometers for the fast determination of viscosity as specified in ISO 2555 and other ASTM norms. Instrument offers viscosity measurements which are 100% compatible with the Brookfield method and permits to carry out comparative measurements in accordance to recognized standards in quality control laboratories.（3000系列有V0，V1和V2 三个型号，执行ISO2555和ASTM标准，结果是100％兼容的Brookfield方法，并允许根据公认的标准，质量控制实验室的比较测量。）

All models are available in three different versions: Version "L" for low to medium viscosity, version "R" for medium to high viscosity and version "H" for high to very high viscosity.（所有粘度计型号都提供三个版本：“L”版本中低粘度的版本为“R”中高粘度版本“H”为高粘度。）

The basic model, V0, has digital display for direct reading of diverse parameters, under –or over-range warning signal and 24 months warranty.型号V0，最基本的粘度计，直接读取数字显示各种参数测量，24个月保修。

Model V1 adds interface RS232, software ViscosoftBasic for data gathering and temperature probe (PT 100).（粘度计V1 ，配有RS232接口和ViscosoftBasic的数据软件，温度传感器（PT100）。

Model V2 has 2 more speeds –and consequently a wider viscosity range-, bidirectional interface RS232 and optionally, software ViscosoftPlus for the automated control of viscometer and the issuing of rheological studies.（V2型粘度计两种速度，因此能测试更广泛的粘度范围，双向RS232接口选项Viscosoft Plus软件可以控制V2和流变学研究）。

DISPLAYED DATA 显示

Speed selected 转速

rpm

Spindle used 转子

spindle reference

Dynamic viscosity 粘度

mPas or cP (in version H, dPas or P)

Full scale percentage满量程的百分比

Sample temperature样品温度

ºC or ºF

Auto range to display viscosity limits最大读取范围

mPas o cP (in version H, dPas or P)

Shear Rate (SR) (with special spindles)变形率

1/sec (only in V2 version)

Shear Stress (SS) (with special spindles)扭矩

N/m2 or dyne/cm2 (only in V2 version

TECHNICAL DATA - SPEEDS 转速

Model V0

0.3, 0.5, 0.6, 1, 1.5, 2, 2.5, 3, 4, 5, 6, 10, 12, 20, 30, 50, 60, 100 rpm

Model V1

0.3, 0.5, 0.6, 1, 1.5, 2, 2.5, 3, 4, 5, 6, 10, 12, 20, 30, 50, 60, 100, 200 rpm

Model V2

0.1, 0.2, 0.3, 0.5, 0.6, 1, 1.5, 2, 2.5, 3, 4, 5, 6, 10, 12, 20, 30, 50, 60, 100, 200 rpm

TECHNICAL DATA - SPINDLES 转子

Version L (low viscosity)

(4 spindle L1-L2-L3-L4)

Version R (medium viscosity)

(6 spindle R2-R3-R4-R5-R6-R7)

Version H (high viscosity)

(6 spindle R2-R3-R4-R5-R6-R7)

TECHNICAL DATA - VISCOSITY RANGE 粘度测量范围：

V0L

6 - 2.000.000 mPas/cP - 72 ranges (18 speeds with 4 spindles)

V0R

40 - 13.000.000 mPas/cP - 108 ranges (18 speeds with 6 spindles)

V0H

3,2 - 1.066.660 dPas/P - 108 ranges (18 speeds with 6 spindles)

V1L

3 - 2.000.000 mPas/cP - 76 ranges (19 speeds with 4 spindles)

V1R

20 - 13.000.000 mPas/cP - 114 ranges (19 speeds with 6 spindles)

V1H

1,6 - 1.066.660 dPas/P - 114 ranges (19 speeds with 6 spindles)

V2L

3 - 6.000.000 mPas/cP - 84 ranges (21 speeds with 4 spindles)

V2R

20 - 40.000.000 mPas/cP - 126 ranges (21 speeds with 6 spindles)

V2H

1,6 - 3.200.000 dPas/P - 126 ranges (21 speeds with 6 spindles)

Accuracy精度：

± 1% of full scale 满量程

Repeatability重复性：

± 0,2%

TECHNICAL DATA - THERMOMETER

Temperature range温度测量范围：

-15ºC a + 180ºC (+ 5ºF a +356ºF)

Resolution分辨率：

0,1ºC (0,1722ºF)

Accuracy精度：

± 0,1ºC
