One Series

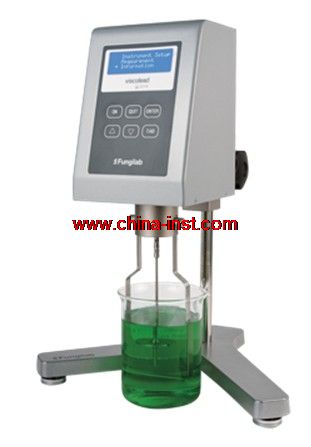

Original Fungilab Viscometer. Essential viscosity measurement.
Features
Friendly user
Auto range
Display of maximum measurable limits
Displayed info 显示
Viscosity (cP or mPa·s)粘度
% Torque 扭矩
Spindle 转子
Speed 转速
Auto-test
it checks the internal function in order to make the unit ready to use
Languages options
English / French / German / Catalan / Spanish / Italian / Japanese / Polish / Dutch / Portuguese
Sound alarm
Under or over range
Universal adapter
All accessories such as Brookfield (Optional)
Spindles
AISI 316 stainless steel spindles, easily identified by number and letter when changed according to range of viscosity.
These are the standards our units follow:执行标准
BS:6075,5350
ISO:2555,1652
ASTM: 115, 789, 1076, 1084, 1286, 1417, 1439, 1638, 1824, 2196, 2336, 2364, 2393, 2556, 2669, 2849, 2983, 2994, 3232, 3236, 3716
CodeModel型号Measuring Range (cP)测量范围Speed (r.p.m)转速度Number of speeds档位
V100003 |
VISCOLEAD ONE L |
20 - 2.000.000 |
0.3 - 100 |
18 |
V100002 |
VISCOLEAD ONE R |
100 - 13.000.000 |
0.3 - 100 |
18 |
V100001 |
VISCOLEAD ONE H |
200 - 106.000.000 |
0.3 - 100 |
18 |
Technical
Precision: ± 1% of full scale.精度
Resolution:分辨率
Using low viscosity adapter: 0.01
For lower than 10.000 viscosity cP: 0.1
For viscosity equal to or above 10.000 cP: 1
Supplied at 100-240 VAC, 50/60 Hz
