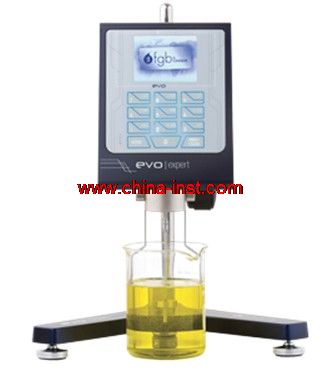

Expert EVO

Fungilab Evo Series for advance performance and multifuctional viscosity measurements.

Features

Languages options
English / French / German / Catalan / Spanish / Italian / Japanese / Polish / Dutch / Portuguese

New features for your viscosity measurements with the new Evo Series:
Colour TFT screen, for easy readings and fast data recognition.
New intuitive Full Touch key pad: select your data in one touch.
Light-up Led: unit guides you to the proper functionality
New USB connection: Type A 2.0 generation for downloading data to your PC
Wi-Fi: integrated in system for easy control and access to your measurements.
OPTIONAL: FSP System

Data displayed:
Selected speed: r.p.m.
Selected spindle: SP
Viscosity reading: cP (mPa·s) or cSt
Percentage of full scale: %
Sample temperature: oC or oF
Shear Rate (with coaxial spindles): SR (s -1)
Shear Stress (with coaxial spindles): SS (N/m2)
Density (introduced by the user):g/cm3

Viscosity reading: dynamic viscosity (cP or mPa·s) or kinematics viscosity (cSt).
Unit converter SI to CGS.

Program features:
Time to torque & Time to stop
9 working memories
Customizable speed options
Multistep
Ramp

AUTO-TEST: automatical internal viscosimeter checking
AUTO-RANGE: full scale range for combination spindle speed.
Temperature reading by PT100.
User-enabled viscosity and temperature calibration.
10 language options.

Spindles:
AISI 316 stainless steel spindles, easily identified by number and letter when changed according to range of viscosity.

These are the standards our units follow:
BS: 6075, 5350 • ISO: 2555, 1652 • ASTM: 115, 789, 1076, 1084, 1286, 1417, 1439, 1638, 1824, 2196,2336, 2364, 2393, 2556, 2669, 2849, 2983, 2994, 3232, 3236, 3716

Datalogger software for Evo
Expert and Evo Premium:
Software that offers you the possibility to work with the data gathered by the unit in your viscometer screen in an Excel® file format. Easy to use and to manage your viscosity measurements in just one touch. You can also download the data to the computer using our datalogger software.

FDB Software for Evo Premium:
The FDB software developed by Fungilab has been designed to work with the Evo Premium series. It offers the the possibility to program the viscometer for step, ramp and multi-step curves, and it is an important tool to study the viscosity behaviour of different liquids.

Control software:
Establishing viscosity programs, documenting the procedure and the results in real time are some of the options offered by the Fungilab Data Boss software developed by FUNGILAB. The software has been designed to be very intuitive. The option menu provides a clear view of the program. The help menu provides charts and descriptive texts that offer a clear explanation of the working options.
