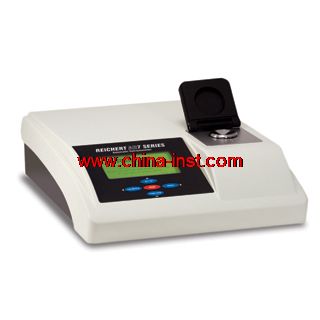

Reichert AR700 Features:

• Sapphire prism for incredible durability
• Peltier temperature control from 10°C to 100°C with automatic temperature equilibration detection to ensure accurate readings
• No water bath circulators are ever required
• Refractive Index range of 1.33000 to 1.60000
• Brix range of 0.00 to 95.00%
• User-definable calibration points throughout the reading range ensure accuracy at every point
• Accommodates sample types that are transparent, translucent or opaque
• Simple calibration, NIST certified oils included
• Calibration history log
• Accessories enhance repeatability, accuracy and reliability for special applications that call for them

Reading Precision

AR700 has precision to 0.01% Brix or 0.00001 Refractive Index

Reichert AR700 Technical Specifications:

Operation	Automatic, Reflected Light Refractometer
Catalog Number	13107000 (110 to 220v with US, EU and UK power cords)
Sample Types	Transparent, translucent, and opaque liquids
Reading Range	1.33000 to 1.60000 Refractive Index, 0.00 to 95.00% Brix
Precision	0.00001 Refractive Index, 0.01% Brix
Illumination	High intensity, long life LED’s, 589 nm
Calibration	Set Point or Set Point/Span user- definable
Temperature Controlled Method	Built-In Peltier system, (No water bath circulator needed)
Temperature Control Range	10° to 100° Celsius
Temperature Precision	0.01° Celsius
Prism Assembly	Sapphire prism mechanically sealed with Teflon gasket to 416-grade stainless steel sample well
Display Graphic	LCD display, 4.3"W x 2.4"H (11 x 6cm)
User Interface	Simple, effective 5-button operation
I/O	2 RS-232-C serial ports
Warranty	2 years
Software Features	Calibration history record, programmable with up to 14 custom scales
	password protected set-up, automatic sample equilibration detection,
	restore to factory option
