Operation |

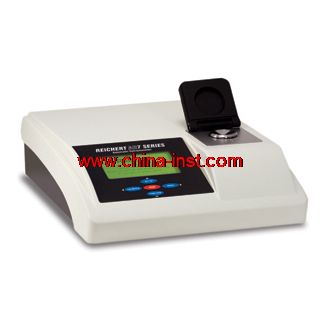

Automatic, Reflected Light Refractometer |
|
|
Catalog Number |
13107700 (110 to 220v with US, EU and UK power cords) |
|
|
Sample Types |
Transparent, translucent, and opaque liquids |
|
|
Reading Range |
1.3300 to 1.6000 Refractive Index, 0.0 to 95.0% Brix |
|
|
Precision |
0.0001 Refractive Index, 0.1% Brix |
|
|
Illumination |
High intensity, long life LED’s, 589 nm |
|
|
Calibration |
Set Point or Set Point/Span user- definable |
|
|
Temperature Control Method |
Built-In Peltier system, (No water bath circulator needed) |
|
|
Temperature Control Range |
10° to 100° Celsius |
|
|
Temperature Precision |
0.01° Celsius |
|
|
Prism Assembly |
Sapphire prism mechanically sealed with Teflon gasket to 416-grade stainless steel sample well |
|
|
Display Graphic |
LCD display, 4.3”w x 2.4”h (11 X 6 cm) |
|
|
User Interface |
Simple, effective 5-button operation |
I/O |
2 RS-232-C serial ports |
|
|
Warranty |
2 years |
|
|
Software Features |
Calibration history record, programmable with up to 14 custom scales, password protected set-up, automatic sample equilibration detection, restore to factory option |
