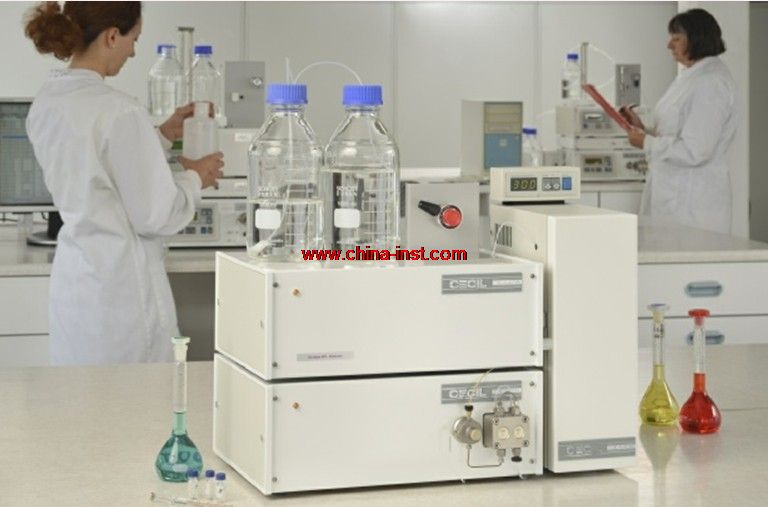

Extraordinarily Easy to use,  Modular HPLC

Each Merit system incorporates the proven, reliable, consistent, high specification, ultra-low drift and durable performance of the trusted Cecil pumps and UV/Visible detectors.

Each system is fully PC controlled, using Merit software, to achieve and save high quality chromatograms.   Automatic integration is provided, without the need for  further baseline adjustment.  Qualitative work is remarkably easy. The fast checking of multi-component samples is easy.

System choices include a CE 4403 UV/Visible detector, a DAD WaveQuest detector, an isocratic CE 4401 pump, a CE 4402 binary pump and a column heater/chiller.  Biocompatible options are available.

Set-up of the system hardware is fast, the pump and detector  modules  each plug  into the USB ports of a PC or laptop.  The Merit software only takes a few seconds to load and  just a few minutes to master.  Save HPLC methods and store chromatograms within  Merit software or elsewhere on the PC , network or portable drive etc.

In the case of the Merit PC software,  chromatograms may be copied and pasted into other software programmes, such as Word or PowerPoint.

All the numerical data points captured within each chromatogram is saved.  In two key strokes, data may be manually copied and pasted into Excel or other software spreadsheets.

GLP data such as time, date, serial number of the detector etc. are automatically displayed.  Again, data may be copied and pasted into Word, PowerPoint or other software packages.

In addition, the Merit software contains a spacious  library.  Once a chromatogram is created, it may be saved into the library.  In two clicks of the mouse, subsequent chromatograms, may then be compared with the saved chromatograms.

When any two chromatograms are automatically compared with each other, a numerical match index is automatically created.  Within a few seconds, a league table of comparable chromatograms is created.  This is such a useful facility when performing initial method development and routine elutions.

The minimum PC requirements for Merit PC software are:-

• Personal Computer with Pentium class processor
• Pentium 200 MHz or better
• Microsoft Windows 95, 98, Me, 2000, NT, XP, 7, 8 or later
• Free hard-drive space required: 2 MB
• CD-ROM drive
• XGA or higher resolution monitor
• Monitor resolution 1024 x 768 or better
• Microsoft Mouse or compatible pointing device
• Two available USB ports

These Merit HPLC systems will make life so much easier for so many chemical, biological and materials analysts in so many fields. Multi compound screening scientists, scientists performing initial method development, production scientists, process development chemists, lecturers, teachers and novices, in fact everyone one who wants high impact quick and easy HPLC, will find that a Merit  is just right for their needs.

The Merit HPLC systems demonstrate the ultimate in HPLC simplicity.  Just inject and go.

Merit HPLC Specifications

Isocratic HPLC Pump CE 4401

Flow Rate	0.001 to 10mL/min in 0.001 steps
Flow Reproducibility	Better than 0.1%
Maximum Pressure	40MPa = 400 bar
Over Pressure Cut-out	Adjustable between 3 and 40MPa
Low Pressure Cut-out	Adjustable between 0 and 40MPa
Material in contact with fluids	Ceramic inserts - biocompatible
	Check valves – ruby and sapphire
Pulsation	Better than ±0.5% at 2mL/min
PC connection	USB port

Binary Low Pressure Mixing HPLC Pump CE 4402

Flow Rate	0.001 to 10mL/min in 0.001/min increments
Pressure Range	0-40MPa over flow range
Flow Accuracy	<±0.5%
Flow Precision	<0.1% RSD
Pressure Pulsation	<±0.5% at 2mL/min
Gradient Forming	Binary gradient low pressure mixing and isocratic high pressure operation
Gradient Control	Using proprietary high-speed proportioning valves
Gradient Precision	Typically 0.2% RSD at 1mL/min
Material in contact with fluids	Ceramic inserts, ruby and sapphire check valves, PEEK
PC connection	USB port

UV-Visible Detector CE 4405

Optical System	Double beam with 1200 lines/mm grating monochromator
Wavelength Range	190-700nm
Wavelength Accuracy	± 1nm
Wavelength Precision	± 0.1nm
Optical Bandwidth	8nm
Straylight	< .02%, 220nm
Lamp	Deuterium lamp with elapsed time indicator
Absorbance Range	0.001 to 2A full scale in 11 ranges
Time Constant	0.1, 0.2, 0.5, 1, 2, 5 and 10 seconds
Method Storage	For up to 30 methods, security protected
Noise	± 1 x 10-5 A peak to peak, 220nm, 2s time constant
Drift	± 1 x 10-4 A/hour at constant temperature
Linearity	Better than 1%, 0.001 – 2A
Automatic Power-up/off	Pre-programmed top save warm-up time
Sample Flow Cell	8µL x 10mm pathlength
Refractive Index Sensitivity	< ± 5 x 10-4 A, water to methanol at 350nm
Flow Rate Sensitivity	< ± 3.5 x 10-3 A, for flow change 1-2mL/min, 300nm
PC connection	USB port

WaveQuest D.A.D. Ultra Fast Scanning Detector  CE 4403

Optical System	Double beam
Monochromator	With 1200 l/mm holographic grating
Wavelength Range	190-700nm
Optical Bandwidth	4nm – constant
Digital Resolution	1nm
Wavelength Accuracy	1nm
Wavelength Reproducibility	0.1nm
Absorbance Range	0 to 3A
Scan Speeds	Up to 1000nm/s
Baseline Flatness	± 0.002A over most of range
Straylight	<0.02% at 220nm and 340nm
Noise	< ±0.5 x 10–5 A at 230nm, 2s air test cell
Drift	< ±0.5 x 10–4 A at 230nm, using air test cell
Calibration and Test	Automatic at switch-on
Number of Peak Scans	Up to 100 peaks for any single elution
Multiple Scans of a Peak	Up to 8 scans of any peak
Scan Trigger	At start, set Absorbance value, point of inflection or at maximum
Scan Storage	Up to 100, password protected
Method Storage	Up to 30 methods, password protected

Heated Oven  CE 4407

Temperature Range	Ambient to 85ºC
Temperature and Set Point	3 digit bright LED display
Temperature Readout Resolution	0.1ºC
Temperature Stability	± 0.01ºC
Number of Columns	3 up to 25cm long with pre-columns
Heating Rate	30 mins to set point of 65ºC (ambient 25ºC)
Stabilising Time	Negligible when set point reached
Leak Detection	Vapour detector – adjustable shut down level

Autosampler  CE 4408

Carousel capacity	50 vials, 2mL
Loop sizes	10μL - 200μL
Injection valve	Rheodyne 7900-000
Sample loop flush	Operator selectable
Volume reproducibility	Better than 0.05%
Carry over (with wash)	Better than 0.005%
Replicate injection	up to 15
Cycle time	12s minimum

Solvent Degasser CE 4020

Number of flow channels	2
Maximum Flowrate	10mL/min
Materials Contacting Solvents	PEEK, glass filled PTFE, Teflon AF
Gas removal	To better than 1ppm at 1mL/min

Flow Rate	0.001 to 10mL/min in 0.001 steps
Flow Reproducibility	Better than 0.1%
Maximum Pressure	40MPa = 400 bar
Over Pressure Cut-out	Adjustable between 3 and 40MPa
Low Pressure Cut-out	Adjustable between 0 and 40MPa
Material in contact with fluids	Ceramic inserts - biocompatible
	Check valves – ruby and sapphire
Pulsation	Better than ±0.5% at 2mL/min
PC connection	USB port

Flow Rate	0.001 to 10mL/min in 0.001 steps
Flow Reproducibility	Better than 0.1%
Maximum Pressure	40MPa = 400 bar
Over Pressure Cut-out	Adjustable between 3 and 40MPa
Low Pressure Cut-out	Adjustable between 0 and 40MPa
Material in contact with fluids	Ceramic inserts - biocompatible
	Check valves – ruby and sapphire
Pulsation	Better than ±0.5% at 2mL/min
PC connection	USB port

====================================================

非常简单易用，模块化高效液相色谱法



每个优点系统采用了经过验证的，可靠的，一致的，高规格，超低漂移和信任塞西尔的耐用性能泵和紫外/可见光检测器。

每个系统完全电脑控制，采用优异的软件，来实现和保存高质量的色谱图。自动一体化设置，而不需要进一步的基线调整。定性的工作是非常容易的。多组分样品的快速的检查也容易。

系统选择包括CE 4403紫外/可见光检测器，二极管阵列检测器WaveQuest ，等度CE 4401泵， CE 4402二元泵和色谱柱加热器/冷却器。生物相容性可供选择。

建立了系统的硬件速度快，泵和检测每个模块插入到PC或笔记本电脑的USB端口。优异的软件只需要几秒钟加载，只是几分钟的时间来掌握。保存的HPLC方法，并在优异的软件或PC ，网络或可移动驱动器等其他地方商店色谱图

在优异的PC软件的情况下，色谱图可以复制并粘贴到其他软件程序，如Word或PowerPoint 。

所有每个色谱图中捕获的数值数据点被保存。在两个关键笔画，数据可以手动复制并粘贴到Excel或其他电子表格软件。

GLP数据，如时间，日期，检测器的序列号等被自动显示。同样，数据可以被复制并粘贴到Word中， PowerPoint或其他软件包。

此外，优异的软件包含了一个宽敞的图书室。一旦色谱创建时，它可被保存到库中。在两次点击鼠标，则后续的色谱图，然后可以与所保存的色谱图相比较。

当任意两个色谱图会自动相互比较，数值匹配索引被自动创建。几秒钟内，可比较色谱图的名次表被创建。这是多么有用的工具执行初始方法开发和日常洗脱时。

为优异的PC软件的最低PC要求是： -
•个人电脑与奔腾级处理器
• Pentium 200 MHz或更好
•微软Windows 95 ， 98 ， ME，2000 ， NT，XP ， 7 ， 8或更高版本
•所需的可用硬盘空间： 2 MB
• CD -ROM驱动器
• XGA或更高分辨率的显示器
•显示器分辨率1024× 768或更高
• Microsoft鼠标或兼容的指针设备
•两个可用的USB端口



这些优异的HPLC系统将让生活变得更轻松了这么多的化学，生物和材料分析在如此众多的领域。多化合物筛选的科学家，执行初始方法开发，生产的科学家，工艺开发的化学家，讲师，教师和新手，其实大家一个谁愿意高抗冲快速简便高效液相色谱科学家，会发现一个优点是正好适合他们的需求。

优异的HPLC系统表现出极致的高效液相色谱法简单。刚刚注入而归。

技术规格：

等度HPLC泵CE 4401
流量0.001〜 10ml/min时0.001步骤
流量重复性优于0.1％
最大压力为40MPa = 400吧
过压开孔可调节3至为40MPa
低压切出可在0和为40MPa
材料与液体陶瓷刀片的接触 - 生物相容性
止回阀 - 红宝石和蓝宝石
脉动小于± 0.5 ％提升以2mL/min
PC连接USB端口

二元梯度混合HPLC泵CE 4402
流量0.001〜 10ml/min时在0.001/min增量
压力范围0 -为40MPa以上流量范围
流量精度< ± 0.5 ％
流量精度< 0.1 ％RSD
以2mL/min压力脉动< ± 0.5 ％
梯度形成二元梯度低压混合和等度高压操作
梯度控制使用专有的高速比例阀
梯度精度一般为0.2 ％，相对标准偏差为1ml/min
材料与液体陶瓷刀片，红宝石和蓝宝石止回阀， PEEK接触
PC连接USB端口
